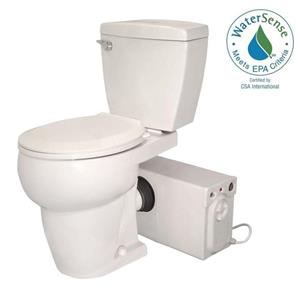

Thetford Anywhere Upflushing Round Toilet System and Macerating Toilet

Original Price: $1,350.00
Sale Price: $1,100.00
In Stock
Quantity:
Product Details

The Thetford Round Toilet Kit is available in a classy white ceramic finish. This system features a unique macerator that is designed to never clog. At the heart of the macerator is a centrifugal pump with a specially designed blade made to cut through dense waste and never get stuck. The macerator is designed to split in half, for times when you ever need to access the pumping unit without having to undo the plumbing. The unique bladder system helps keep unwanted odors from escaping the toilet. The bowl of the Thetford toilet is compliant with ADA's comfort height toilet seat.

The Thetford Round Toilet has a powerful, yet economical 1.28-gallon flush and the pump is capable of a flow rate of 60 gallons per minute. The pump is able to move and disintegrate wastewater up to an 18-foot vertical rise and up to a 150-foot horizontal run. The macerating pump has two additional inputs for a sink (1.5" inlet) and shower/bathtub (2" inlet). The macerating pump has a built-in 1.5" outlet for a vent stack and a 1.25" inch outlet for the wastewater discharge.

Macerating toilets allow you to convert any space into a bathroom of your desire. By using a macerating pump and a rear discharge (P-Trap) toilet you will not have to break any concrete, a timely and expensive project to install or renovate a bathroom. The built-in inlets allow you to add both a sink or shower/tub. These toilet kits will flush the savings back into your wallet.

Installation is a breeze with the Thetford Bathroom Anywhere Macerating Pump and Round Toilet Kit. The macerating pump can be installed up to 36" away from the back of the toilet, as long as there .25" drop per foot leading to the pump. The macerator has a built in manual override button that will allow you to turn on the macerating pump without having to flush the toilet. This is helpful in troubling shooting the system without having to flush the system.

3 Year Manufacturer's Warranty!



What's Included

  • Round Rear Discharge Toilet
  • Water Tank
  • Macerating Pump
  • Connection Billows
  • Cover Plate / Blanking Plug
  • Assorted Clamps
  • Fixation Leg

  • Product Specifications


    Power Supply 120V
    Input Ports 3
    Duty Cycle 60 GPM, 18ft lift, 150 ft. run
    Frequency 60Hz
    Toilet Material Ceramic
    Flush Type Lever, 1.28 gallon
    Color White
    Toilet Depth Approx. 26.75 in.
    Bowl Height 17 in.

    How It Works



    how bathroom anywhere works




    Installation Information

    PDF Manual Thetford Bathroom Anywhere Install Manual




    Manual: Thetford Bathroom Anywhere Install Manual
